Gripple Hang Fast Wire Suspension Fastener

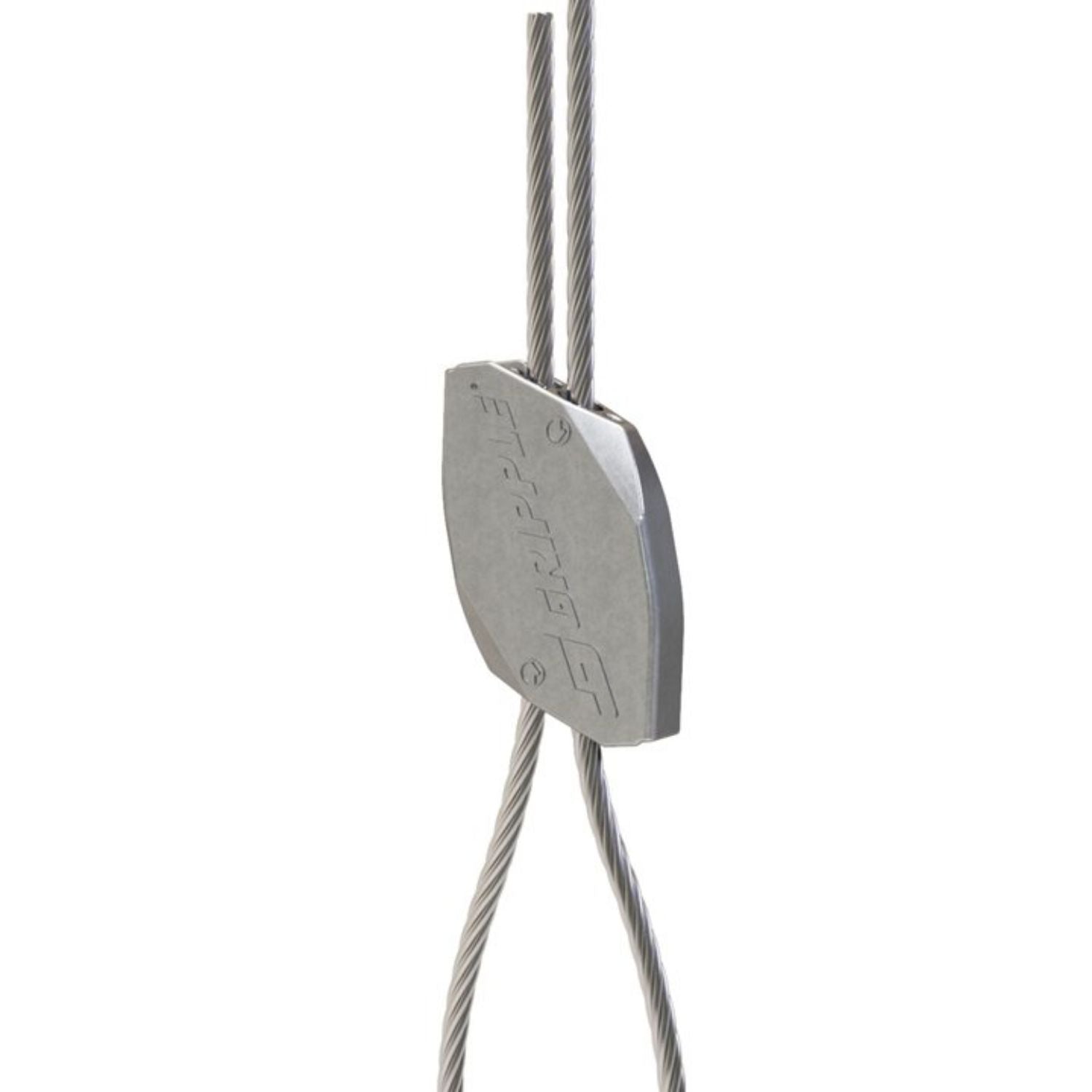

The Gripple Hang Fast is the standard wire rope fastener in the Gripple range, covering rope diameters from 1.00 to 4.75 mm across four sizes. Rope is pushed through one channel, looped around the anchor point and returned through the second; the internal wedges grip it as the line is tensioned. The termination is made by hand - no crimp, no swage, no tool.
No MOQ - Buy Exactly What You Need
SOLD AS SINGLE UNITS - order one, or order hundreds.
• No minimum order: the Hang Fast is commonly sold in full boxes. A job that needs three fasteners does not need a whole box.

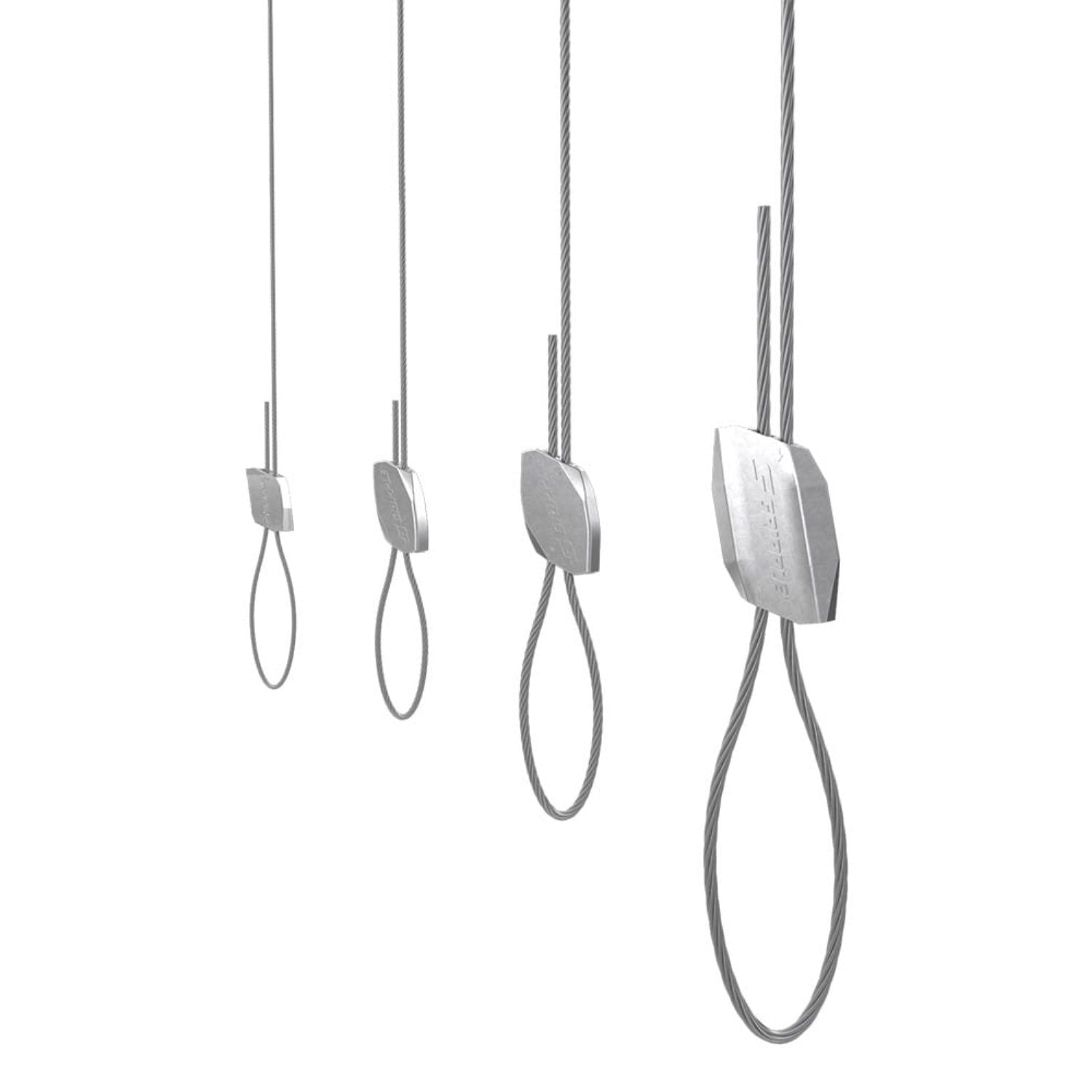

• Mix sizes freely: No.1 to No.4 are all on this page, so one order can cover a run that changes rope diameter partway.
• Spares and replacements: a single fastener to finish a run, or to replace one, without opening a new box.
• Extra Savings: follow our store and check site banners for our latest exceptional promotions to save on your final order value!
⚠️ IMPORTANT: FASTENER ONLY (Wire Rope Not Included)

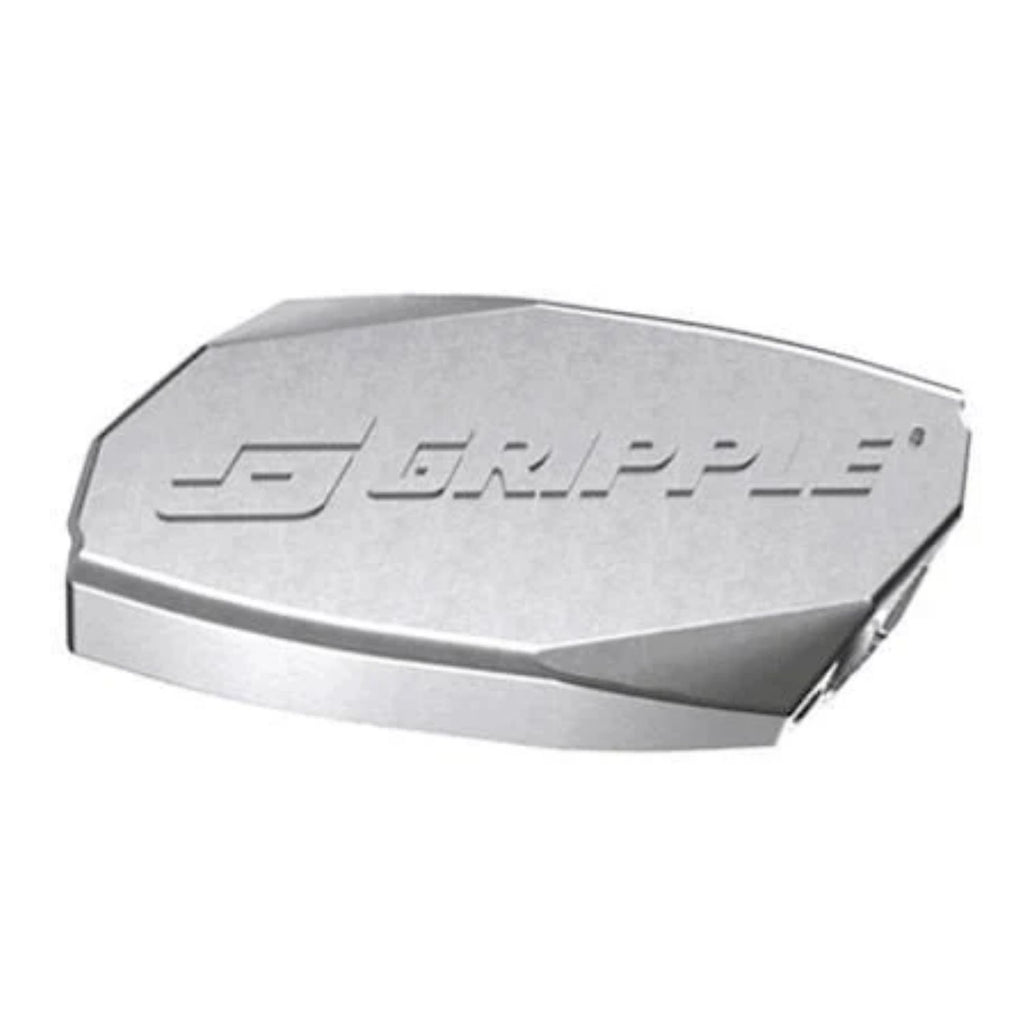

Please note that this product includes the Gripple Hang Fast mechanism/clip only. Wire ropes shown in illustrations are for demonstration purposes. Perfect if you already have your own wire or need a single replacement fastener!
How to use?

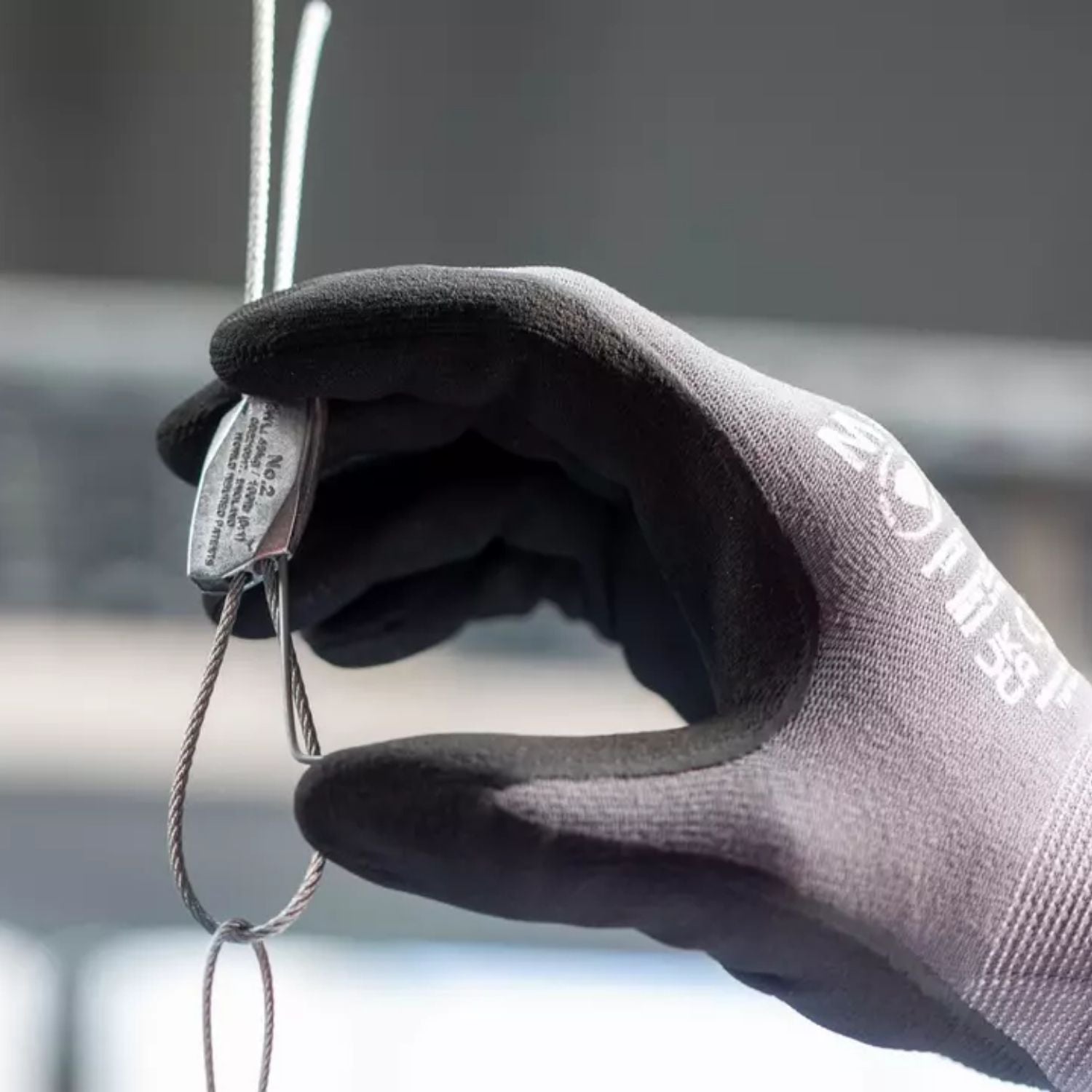

The Gripple Hang Fast has two channels and fits by hand. No tool is needed to make the termination. That is the beauty of this innovation.
-
Pass a length of wire rope through one of the two channels.
-
Loop the rope around the anchor point, or around any suitable bracing point.
-
Return it through the other channel, pulling at least 75 mm (3") of rope through. Pull on the load-bearing section and the Hang Fast locks tight.
🔑 Releasing and re-adjustingA Gripple is one-way by design: rope goes in, rope does not come back. To let the rope run back out
- for dropping a run to its final height, correcting a line pulled too tight, or recovering the fastener for re-use - you need a matching Gripple key: the
Flag Key for No.1 - No.3, or the
Setting Key for No.4.
Technical Guidelines & Load Ratings
Ensure your sourced wire rope matches the technical specifications below for optimal load-holding integrity. For complete load limits and wire gauge parameters, please cross-reference the official Gripple Technical Data Sheets before execution.
| Size |
Wire Rope Diameter |
SWL (5:1 safety factor) |
| No.1 |
1.00 - 1.50 mm |
10 kg |
| No.2 |
2.00 mm |
45 kg |
| No.3 |
3.00 mm |
90 kg |
| No.4 |
4.75 mm |
225 kg |
📢 Technical & Safety Disclaimer
Ratings shown are for the Gripple Standard Hanger this fastener is used with. The Safe Working Loads (SWL) listed in the table above are strictly calculated based on a 5:1 safety factor and are only guaranteed when used in combination with original certified Gripple Wire Rope Kits.
Where a size shows a range of wire rope diameters, the stated SWL applies to the largest diameter in that range; thinner rope within the same range will hold less. Sourcing or utilizing non-Gripple, uncertified, or generic steel wires voids these load-holding specifications. The responsibility and liability for system safety and load integrity remain entirely with the user if third-party wire ropes are utilized.
