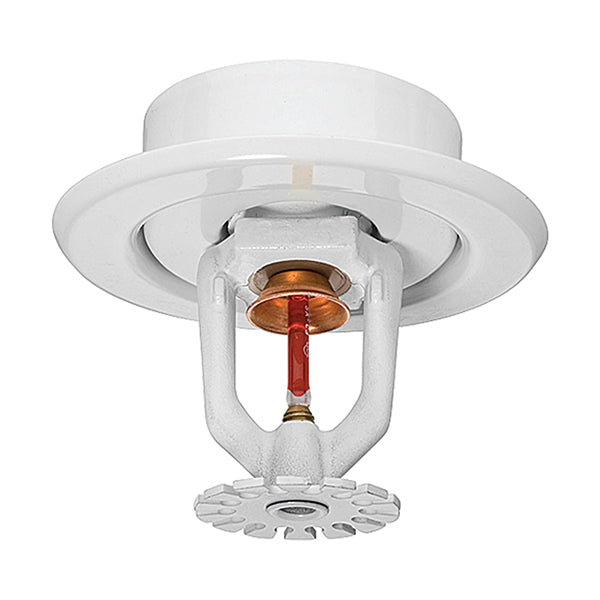

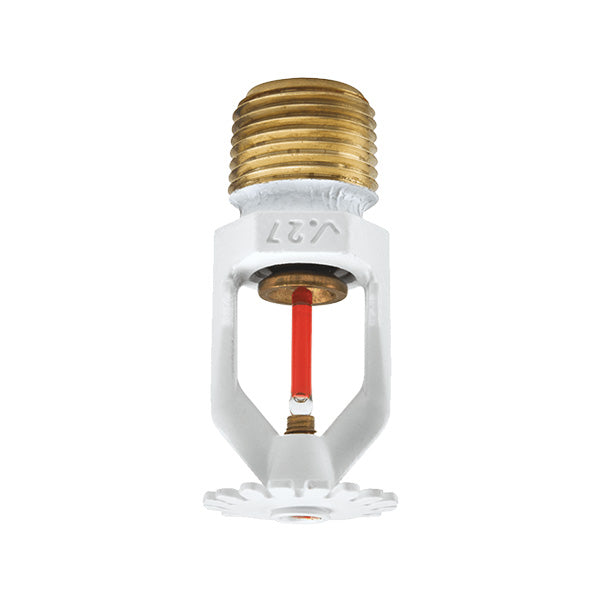

Victaulic® FireLock® S271BCQ440 V2708 Quick Response Pendent Sprinkler

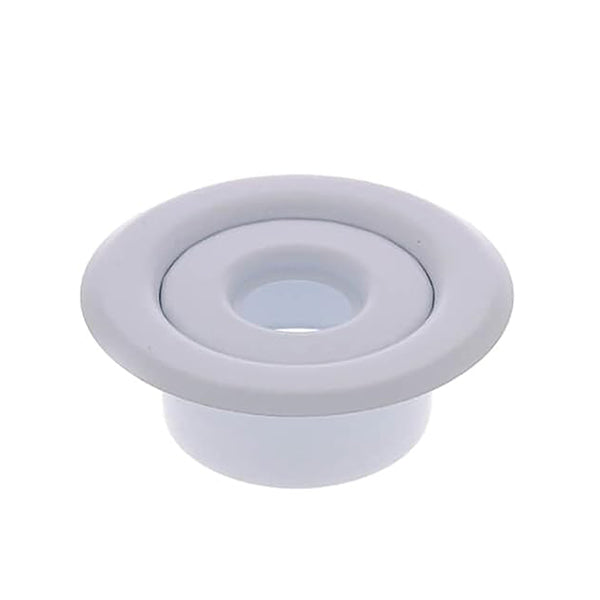

With Head Plate 2 Piece Cover Ring (White)

250 psi

2-3/8 in Overall Length

1/2 in Thread

5.6 Nominal K-Factor

NPT Connection

68.333 Degrees Celsius ( 155 Deg F)

White Painted

Brass/Bronze/Stainless Steel Material

Die cast brass 65-30 frame

These Model V27 standard spray sprinklers are designed to produce a hemispherical spray pattern for standard commercial applications. They are available with either standard or quick response bulb. It is cast with a hex-shaped wrench boss to allow easy tightening from many angles, reducing assembly effort. This sprinkler is available in various temperature ratings and finishes to meet many design requirements. The recessed pendent should be utilized with a Model V27 recessed escutcheon which provides up to 3/4 in of adjustments.
