Description

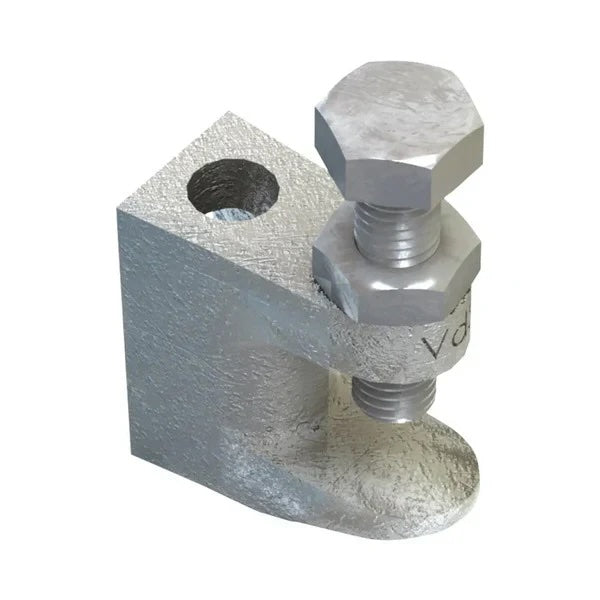

Lindapter Beam Clamp Type FL for Steelwork Flange
Lindapter beam clamps provide a faster installation on steel sections compared to drilling or welding. Hence it is a cost-effective alternative. It offers versatile connection solutions for direct attachments to steel beams.

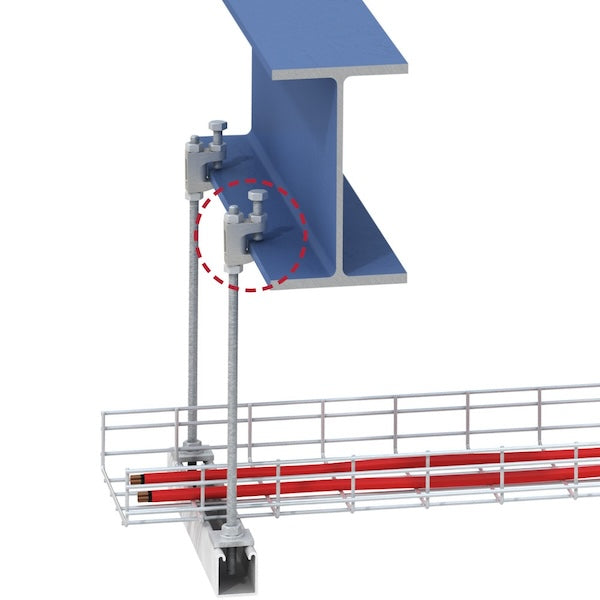

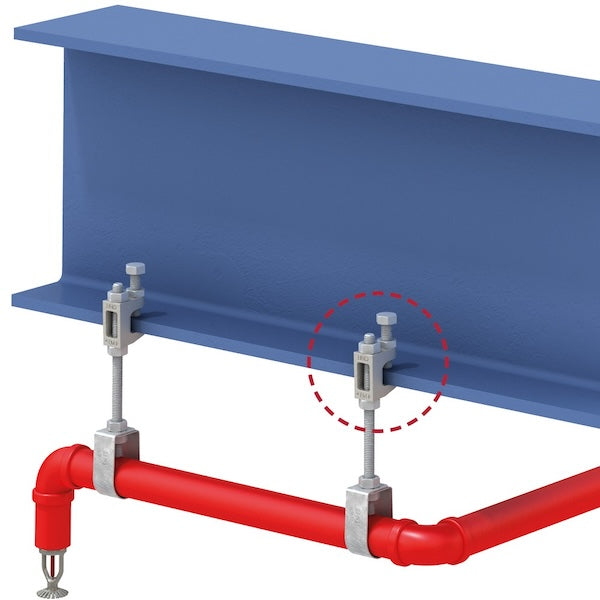

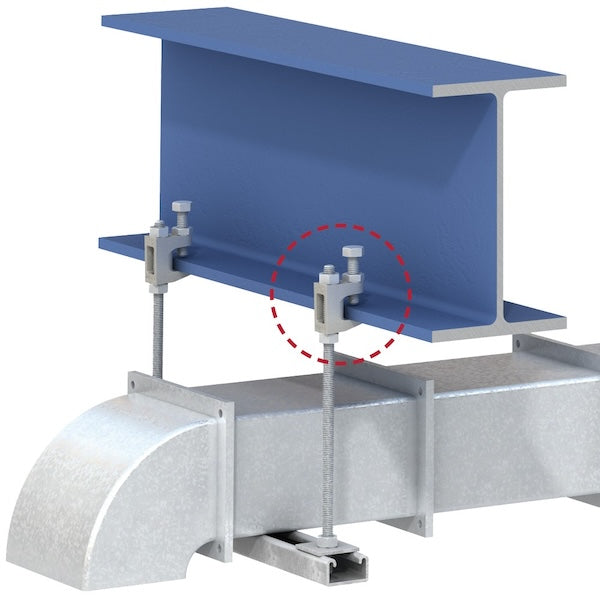

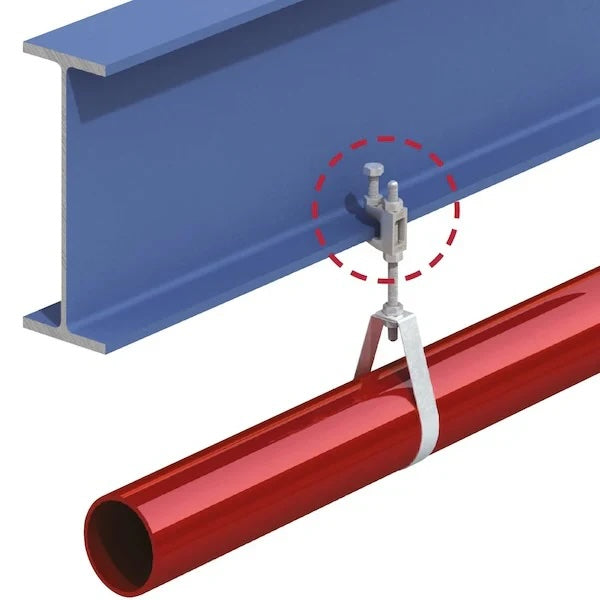

Whether you are hanging a pipe, ductwork or electrical cable tray, this products is perfect to connect the threaded rod to the steel channel.
Hanging Solution for Steelwork

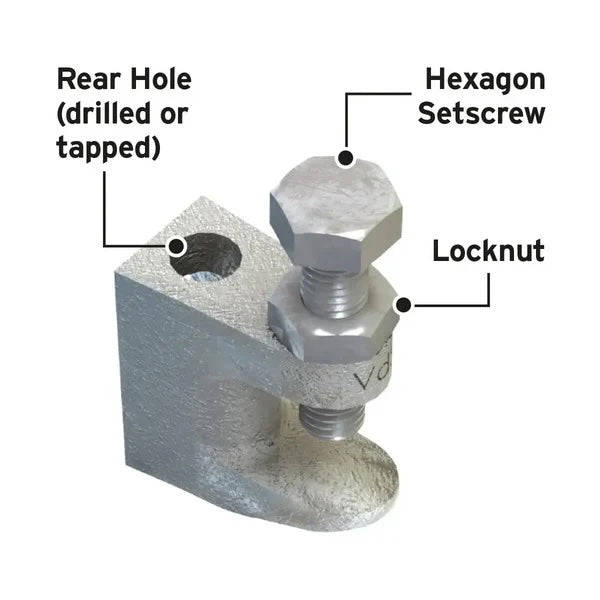

Lindapter clamps have a cost effective design for fast and permanent connection applications. They are suitable for use with bolts or threaded rod. They have a grade 8.8 cup point setscrew providing secure grip on tapered and parallel flanges.
Lindapter flange clamps are 120 mins fire rated per ISO 834 and FM & VdS approved. The body material is malleable iron to BS EN 1562 with zinc plated finish.
We supply from stock with no minimum order requirement.
Technical Details
Type / Size
Safe Working Load
Clamping Range W
Tightening Torque
Fire Rating
Approvals
Dimensions
- Clear Hole Ø Y: 11 mm
- Setscrew Z: M10
- Dimension T: 45 mm
- Dimension U: 40 mm
- Dimension X: 22 mm
- Dimension V: 22 mm
Technical Documents
