Gripple GF Bracket

A horizontal wire rope application, like an overhead catenary into masonry and concrete may be relatively easy compared to steel I-beams. Especially if there is no possible way to loop around with the catenary wire or if the beam is too large. That is when the GF bracket comes into play.

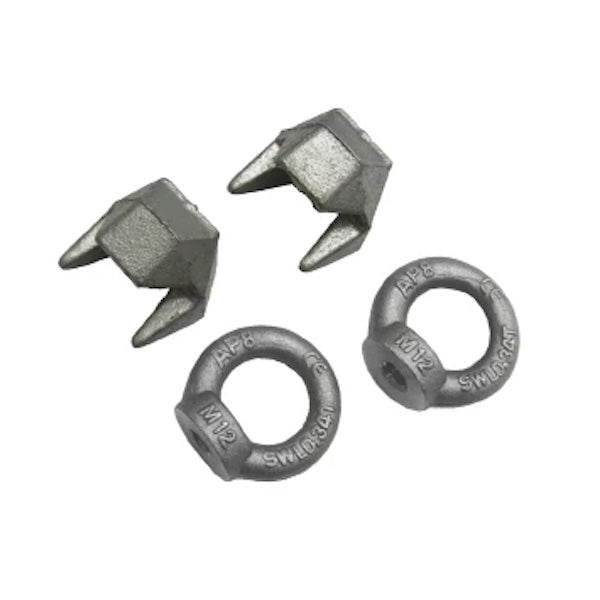

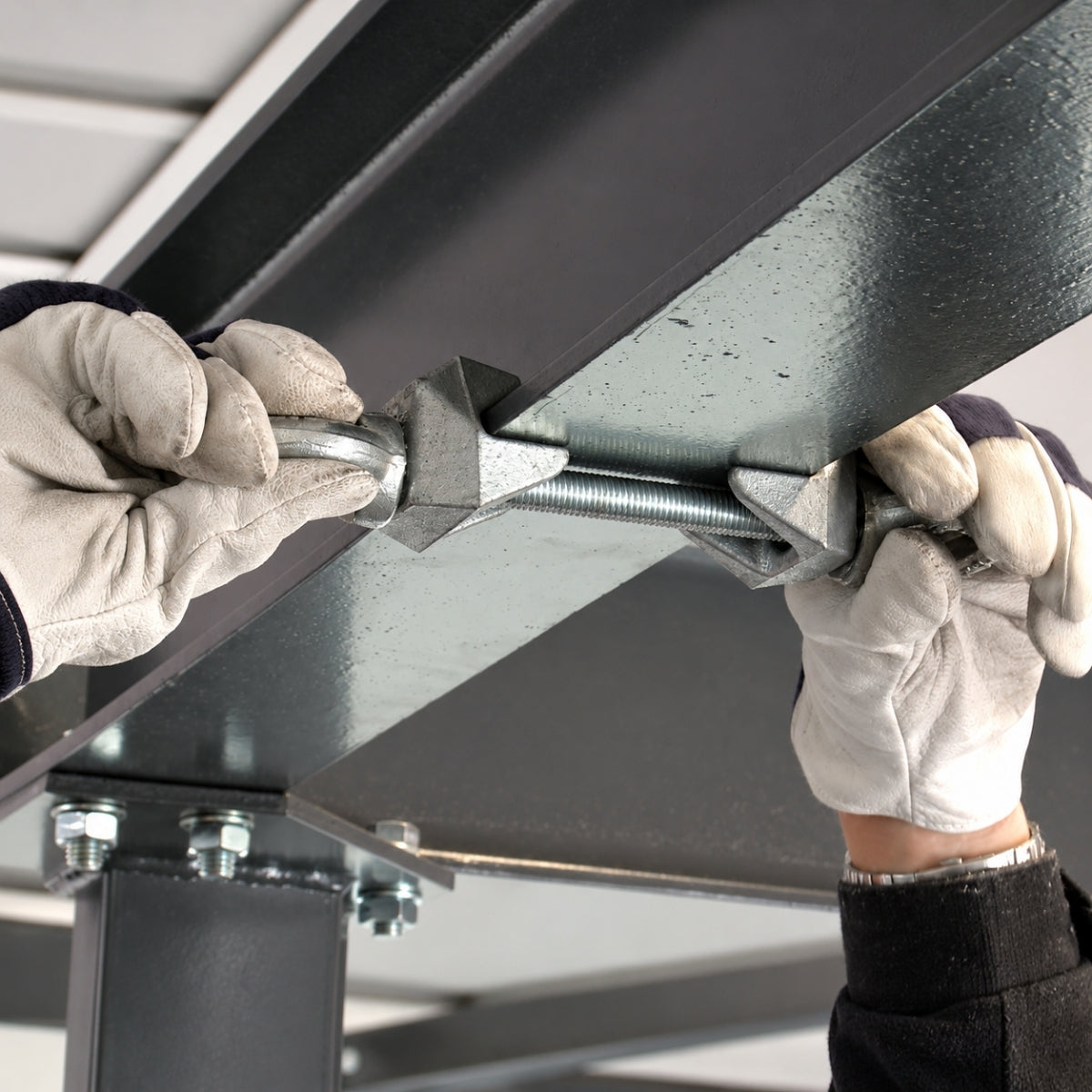

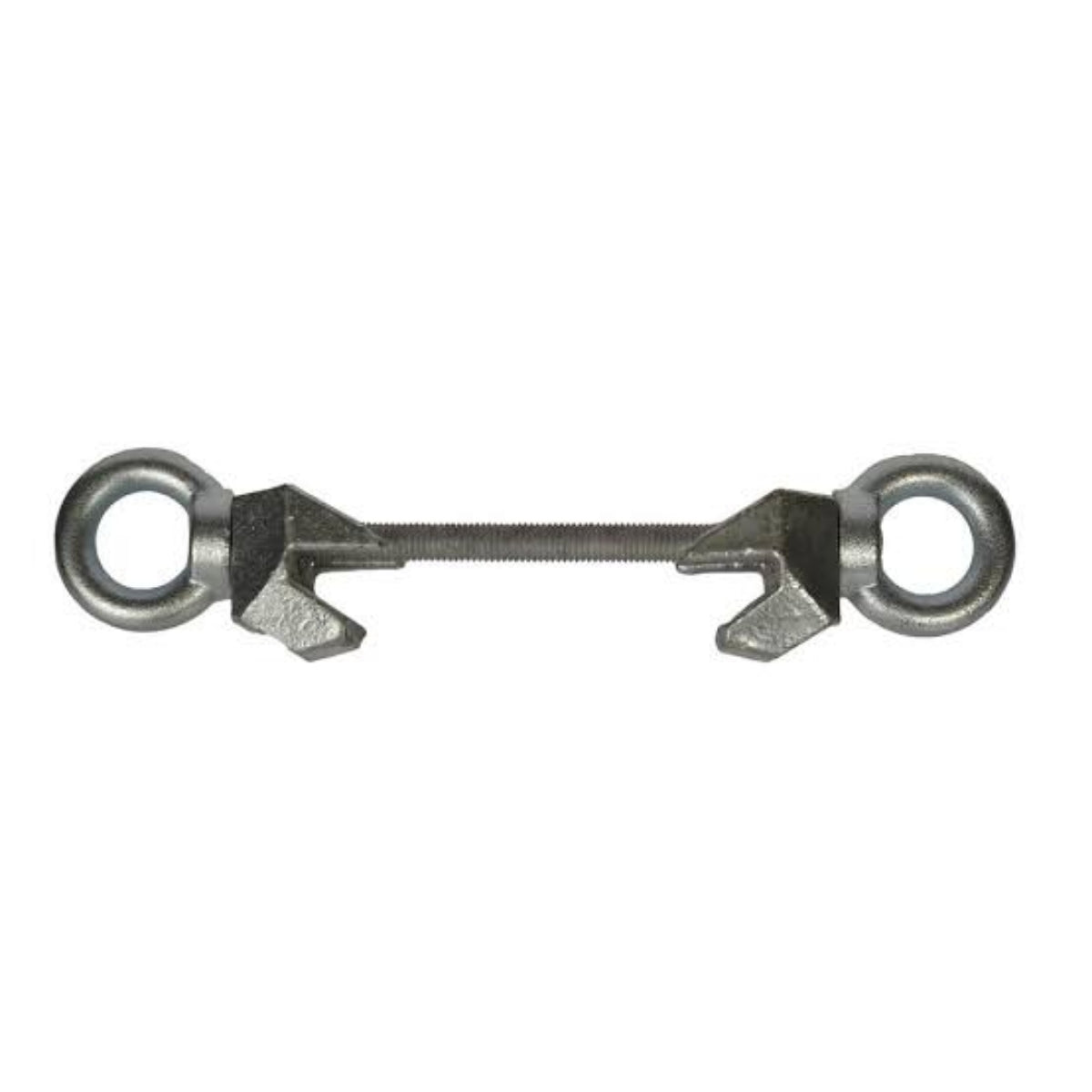

Gripple GF Bracket Kits eliminate the need to loop around an I-beam with the catenary wire rope. By using a standard M12 threaded rod (not included as part of the kit) you can easily fit these components and secure them by hand. No on-site power, special tools or additional washers or nuts required.

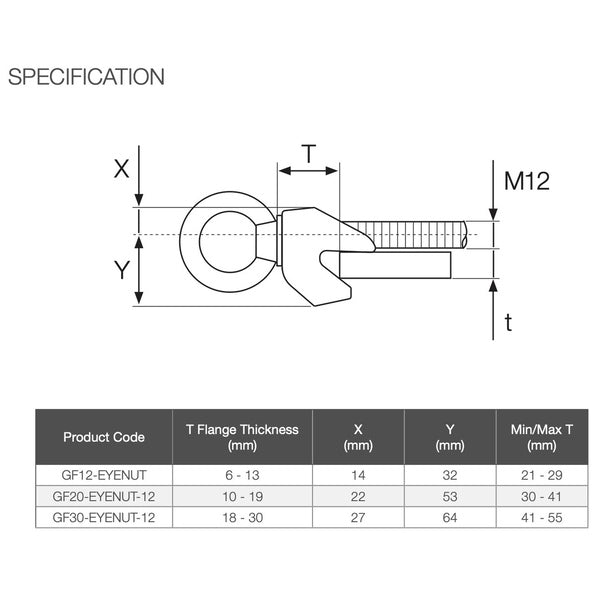

They are suitable for I-beams in thicknesses between 6mm and 30mm. The rated load capacity is 340 kg with a 5:1 safety factor. They are made of hot dip galvanised SG iron, providing a robust and well-engineered visual impact.
