Gripple Duct Trapeze HVAC Suspension Fastener – Bulk

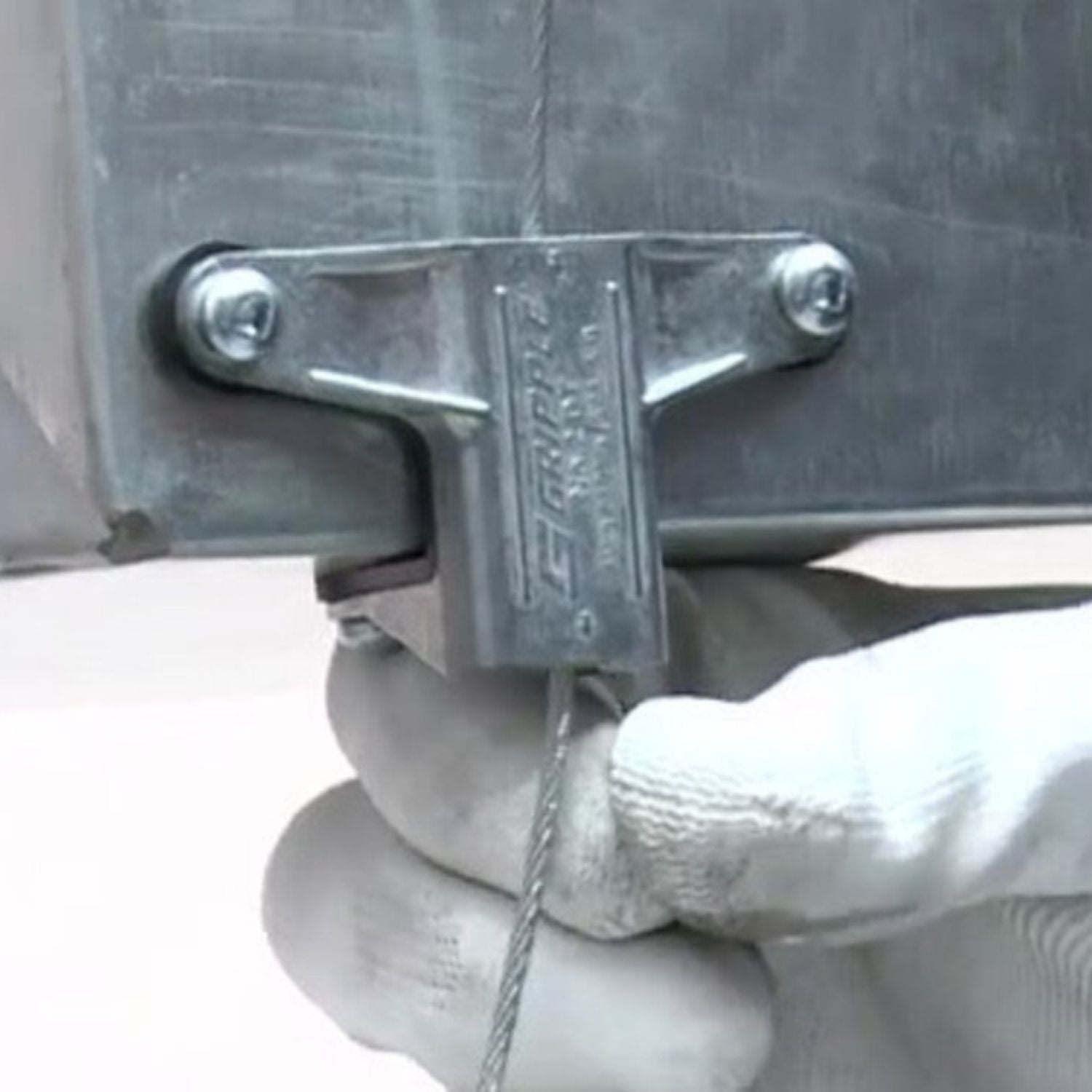

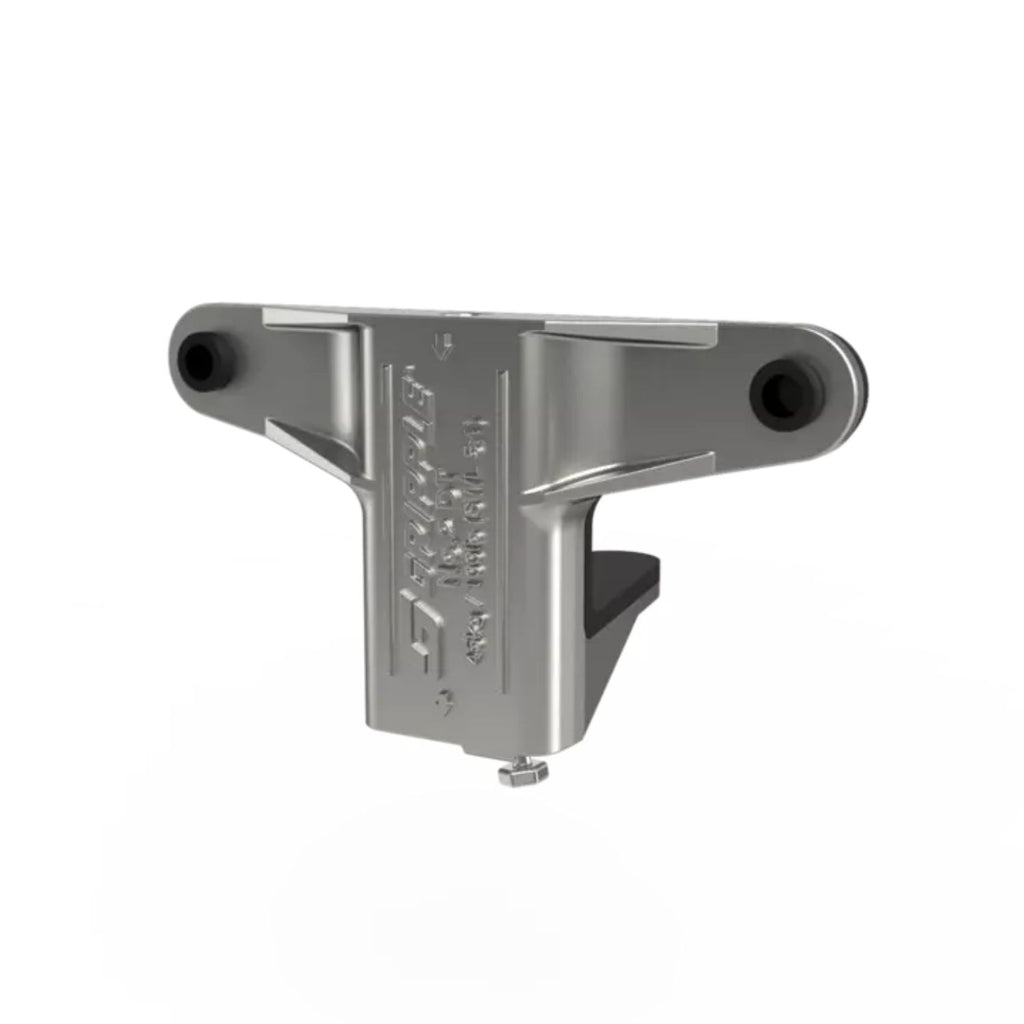

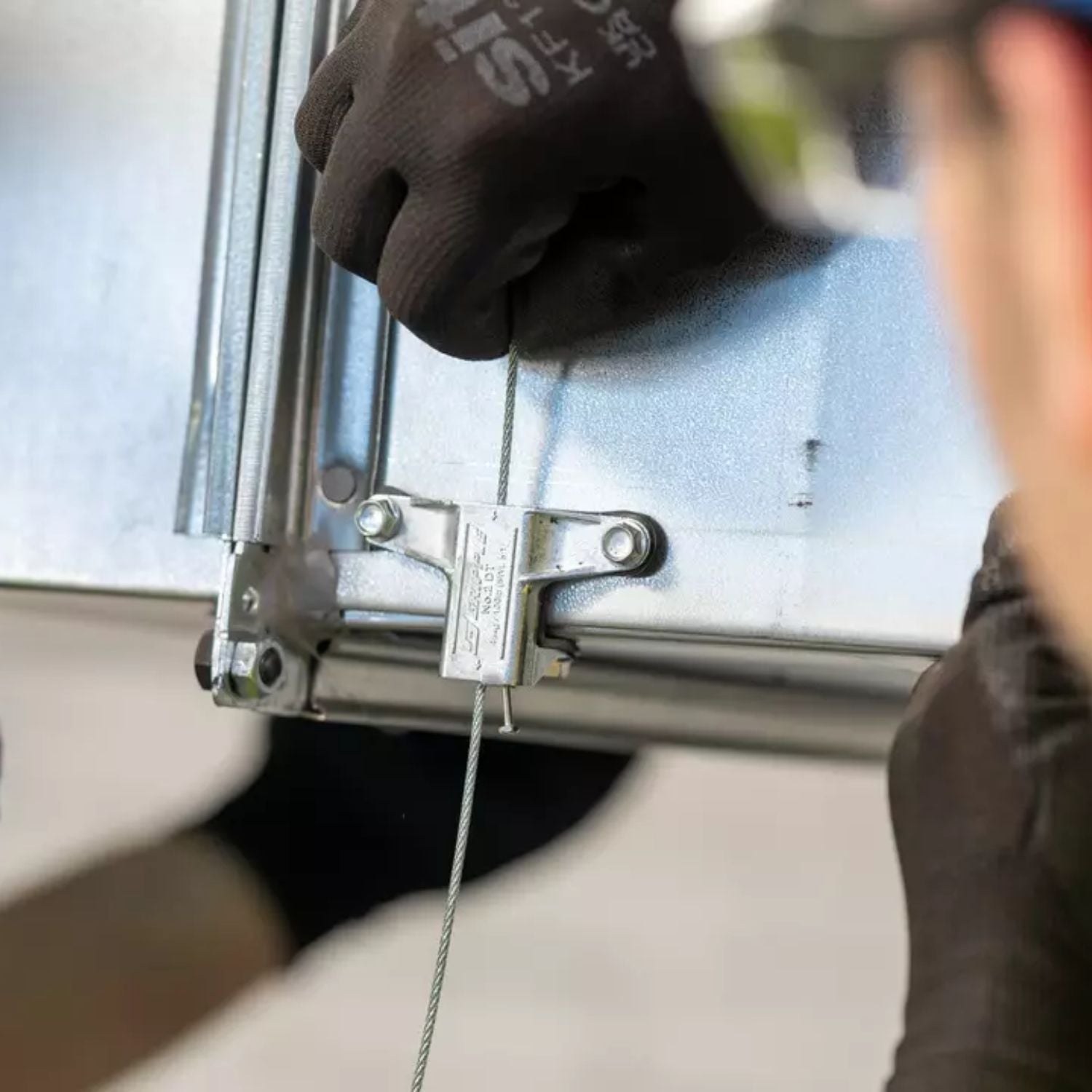

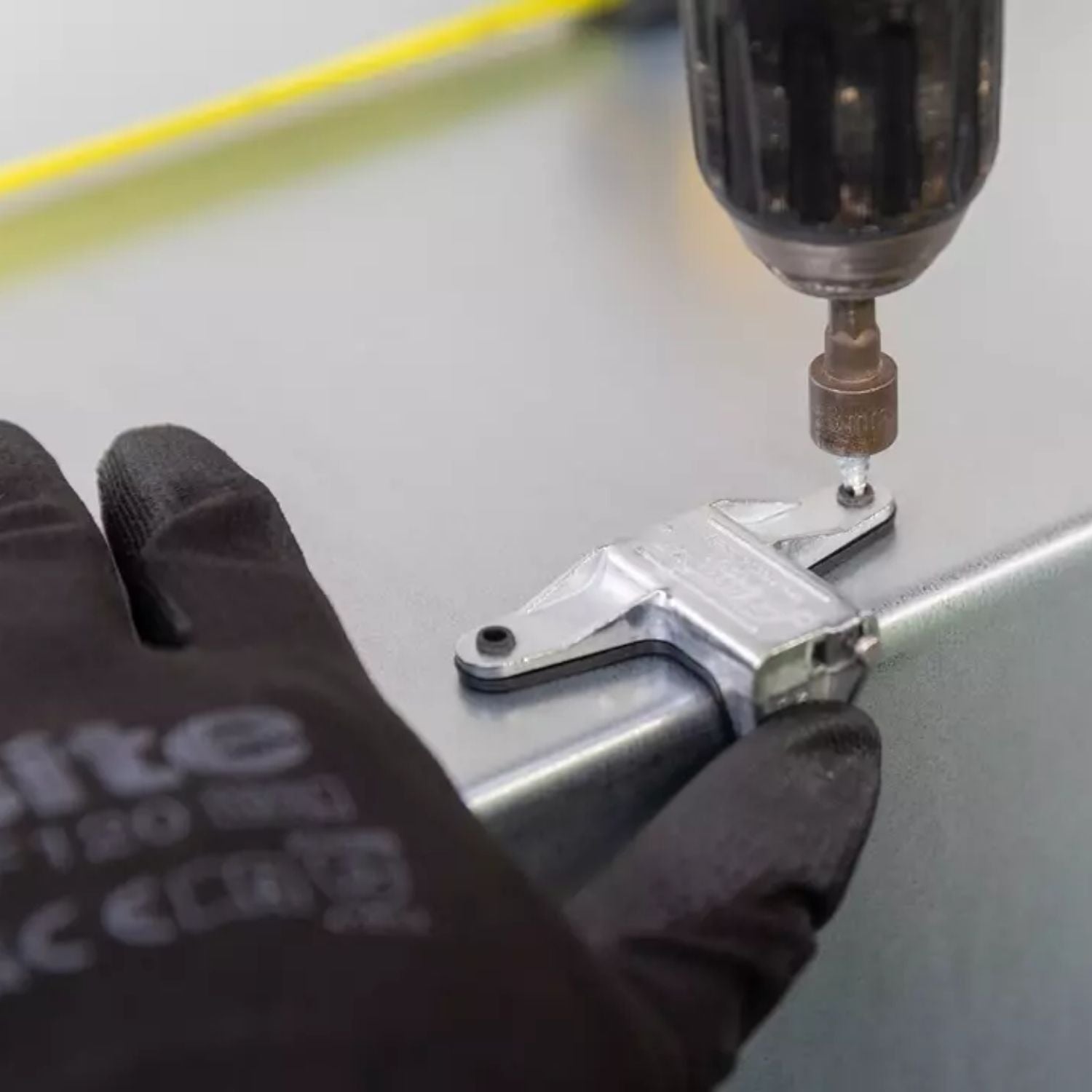

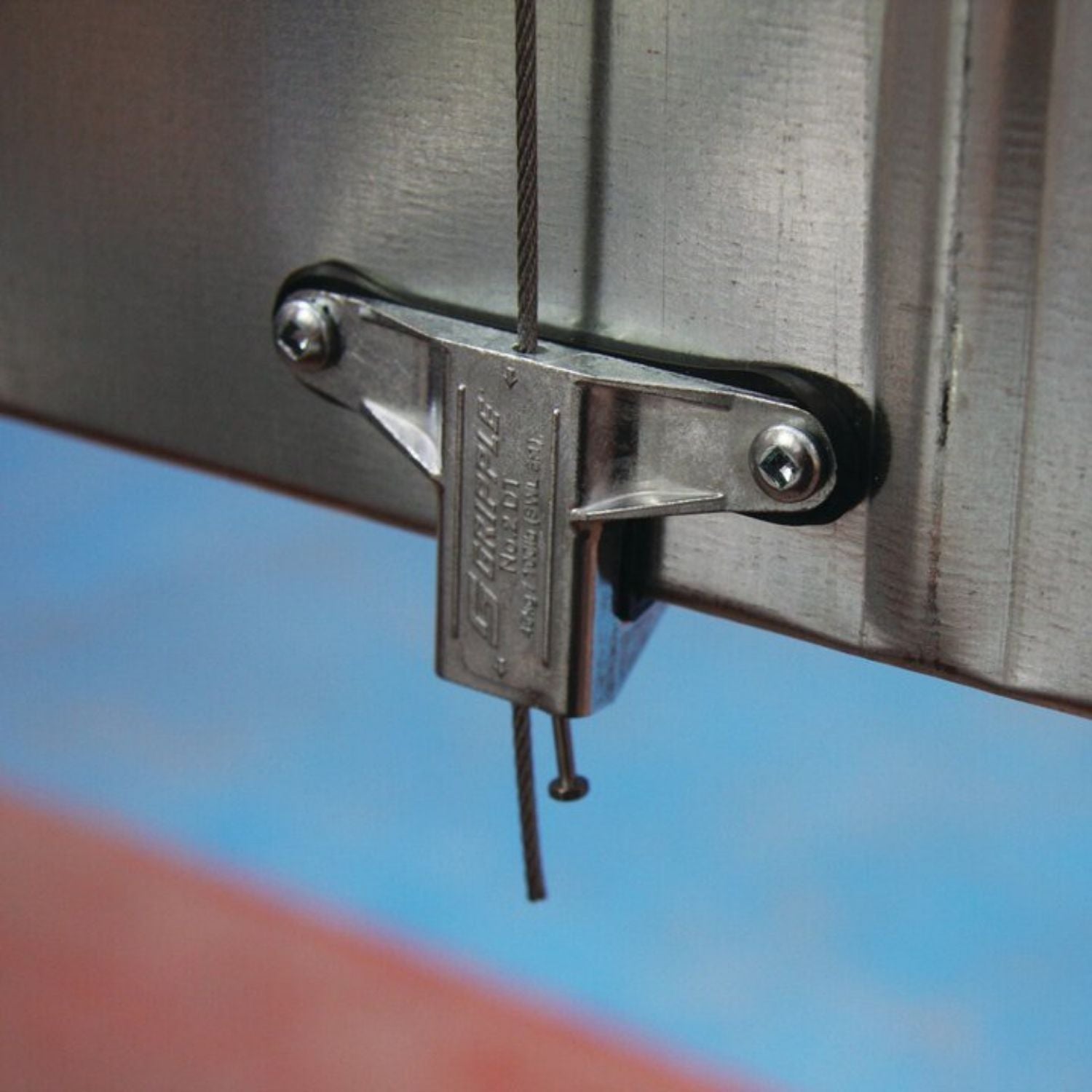

The ultimate professional standard for suspending rectangular HVAC ducts. Designed for fast and seamless structural attachment, the Gripple Duct Trapeze eliminates traditional channel supports. It fastens directly to the ventilation duct with self-tapping screws and features an integrated rubber pad for superior noise reduction and vibration dampening.
📦 COMMERCIAL ADVANTAGE: BULK FASTENERS ONLY
• Available in Bulk Packs: Why pay premium retail prices for individual kits? We supply original Gripple Duct Trapeze fasteners in commercial bulk quantities, designed specifically for mechanical contractors and large-scale site installations.
• Fastener Mechanism Only: Please note that wire ropes and self-tapping screws are for demonstration purposes and are not included in this bulk hardware pack.
• Dynamic Promotional Savings: Take advantage of our shifting volume incentives. Follow our store and check our site layout for active tier-discounts to unlock maximum savings on your commercial orders!
Technical Specifications & Parameters
Ensure your selected wire sizes match the safety regulations required by engineering blueprints. For full load limit compliance parameters, check the official Gripple Datasheet which can be downloaded via the links below.
| Gripple Model |
Wire Diameter |
Max SWL |
| Duct Trapeze |
2.00 mm |
Up to 45 kg (100 lbs) |
📢 Technical Disclaimer & Safety Regulations:
All safe working loads are rated under a strict 1:5 safety factor and are uniquely verified when deployed using original certified Gripple Wire Rope products. Mixing these bulk locking fast-clips with generic or uncertified third-party structural wire rope systems completely nullifies load test guarantees. System setup safety remains the sole operational responsibility of the contractor.
