Isolation Hanger with Spring & Rubber
Acrefine AH-C type vibration hanger combines both spring and rubber elements to deliver superior vibration isolation performance. This hybrid design ensures effective control across a wide frequency range, significantly reducing the transmission of vibration and structure-borne noise from suspended mechanical equipment and services. The rubber component filters out high-frequency vibrations, while the spring element handles low-frequency oscillations for maximum acoustic comfort.

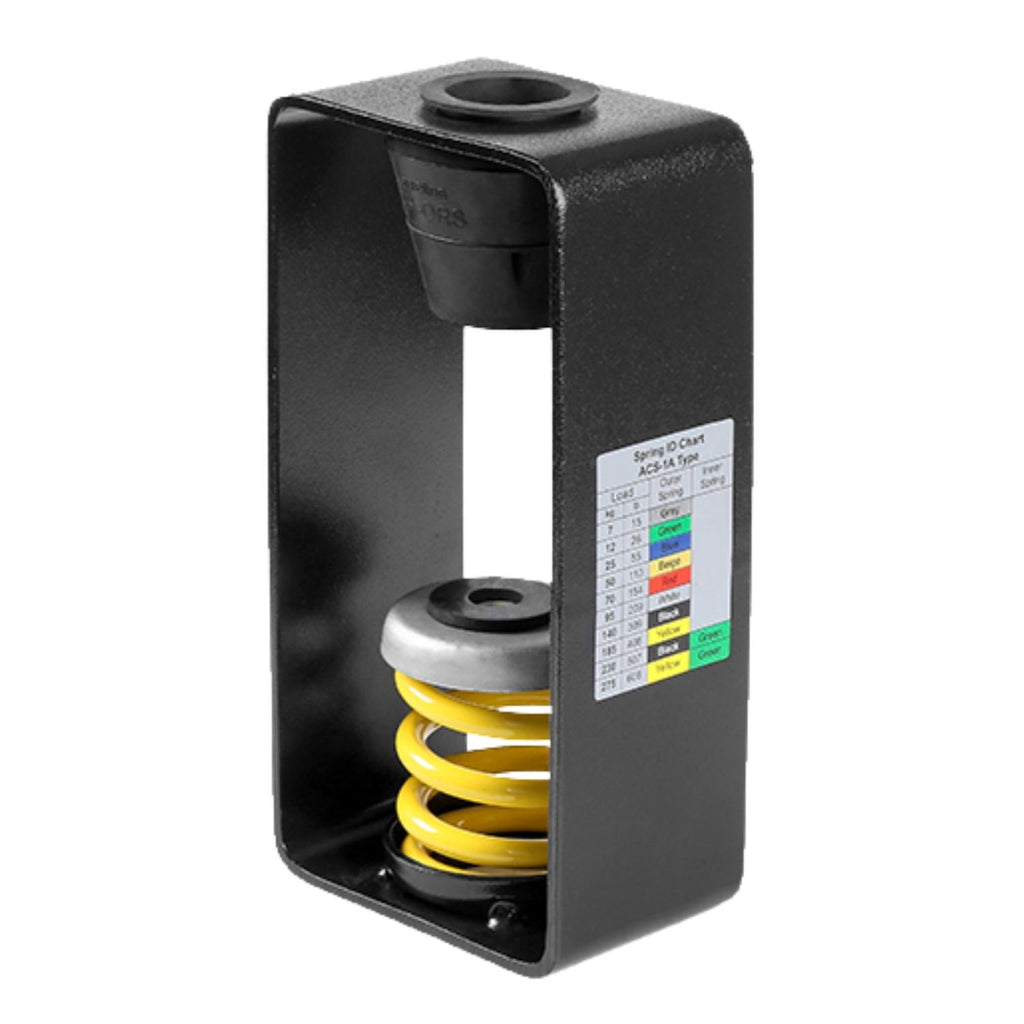

The hanger body is manufactured from heavy-duty welded steel and features a spring assembly encased together with a high-deflection rubber element. This configuration not only enhances stability but also prevents metal-to-metal contact, eliminating secondary noise paths. AH-C type hangers are color-coded for easy load identification and consistent installation results.
Maximum Noise and Vibration Control

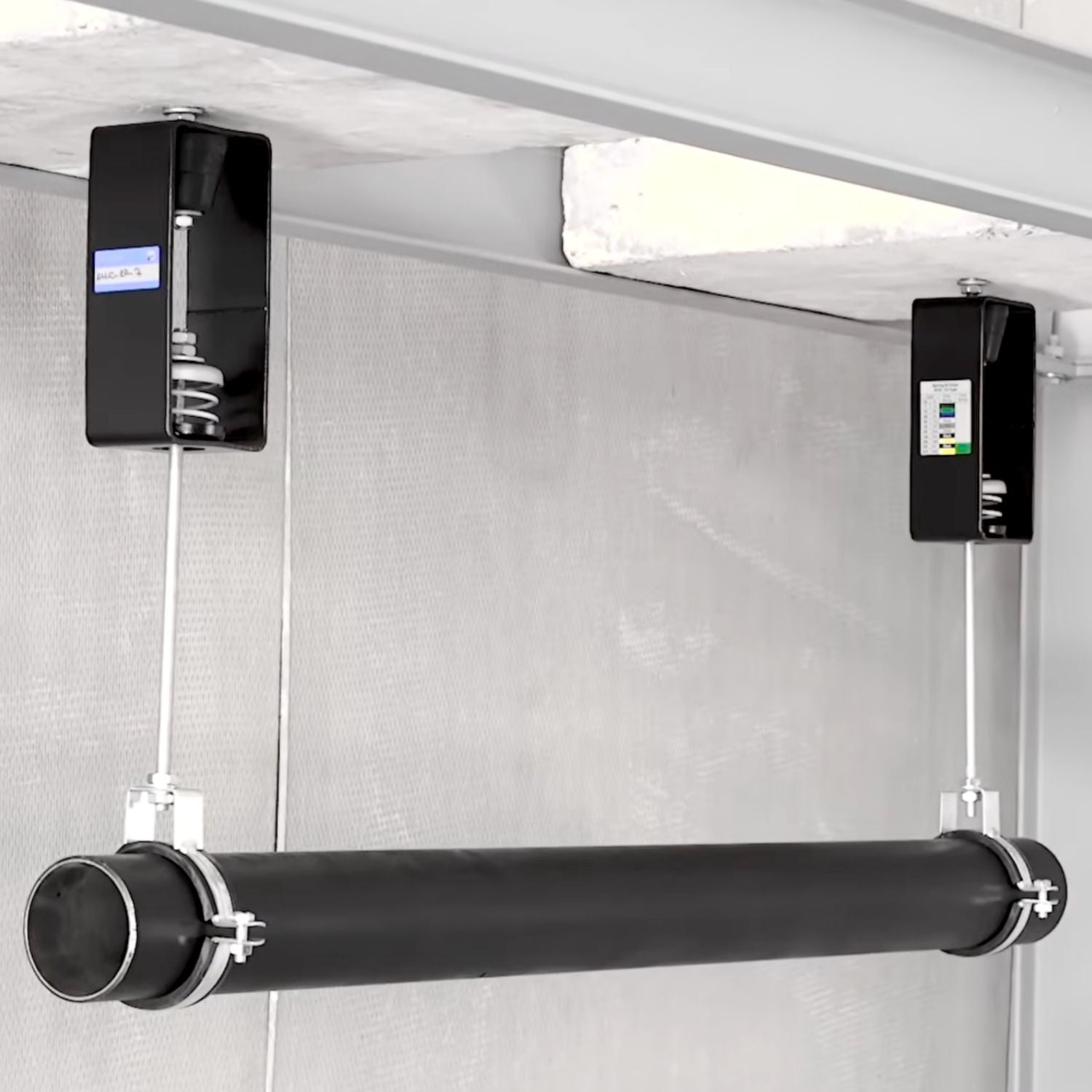

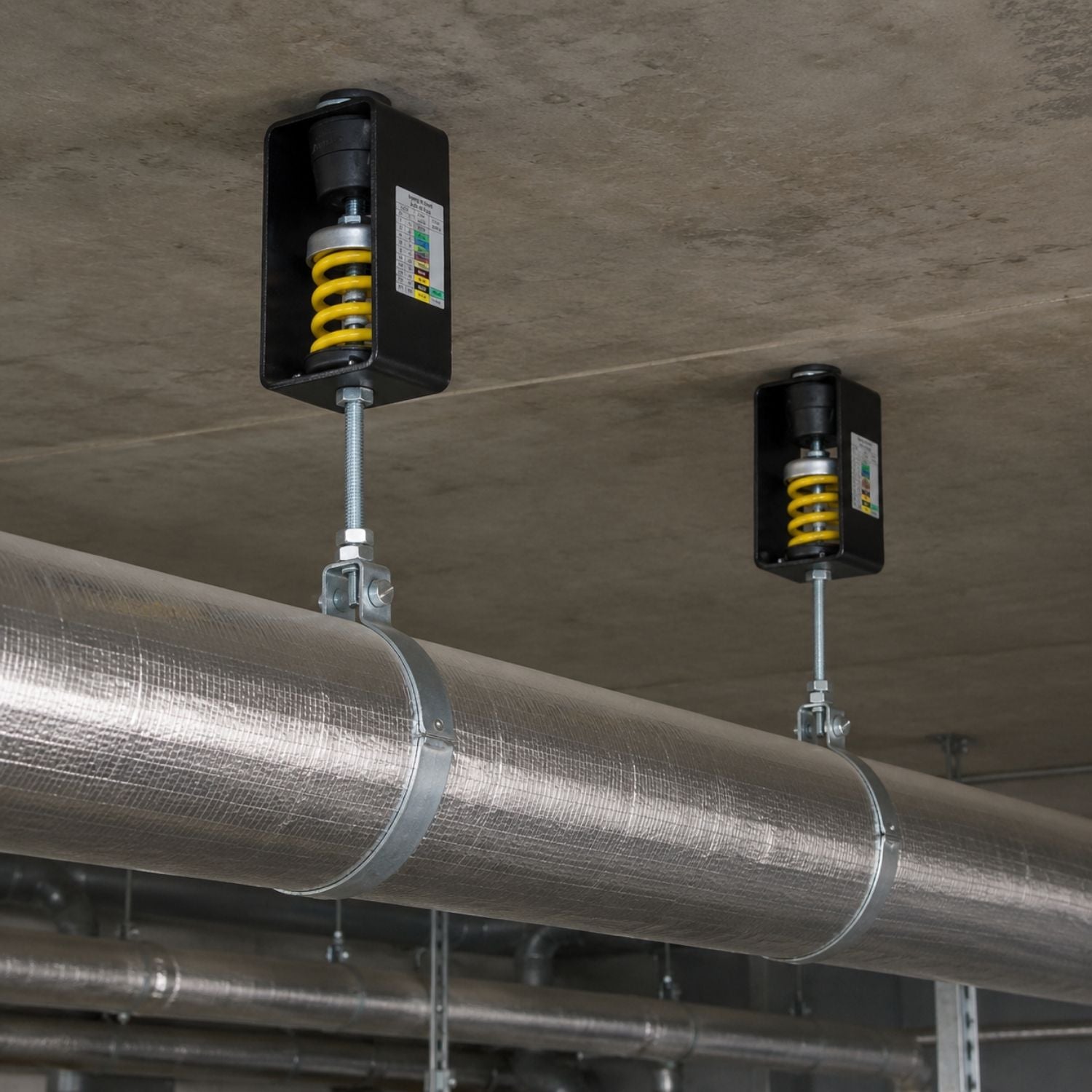

AH-C vibration isolation hangers are ideally suited for critical applications such as HVAC systems, air handling units, piping, ductwork, and suspended ceiling services in sensitive buildings. They are particularly recommended for studios, laboratories, hospitals, and residential high-rises where both low- and high-frequency vibration control is required.
During installation, hangers should be mounted vertically, allowing full spring deflection under operational load while ensuring the rubber element remains within its rated compression limit. Properly distributed loads and alignment are essential to achieving maximum performance. With its dual isolation system, the Acrefine AH-C series represents the most efficient solution for suspended vibration isolation in modern building systems.
