Acrefine Spring Isolator AVI-B

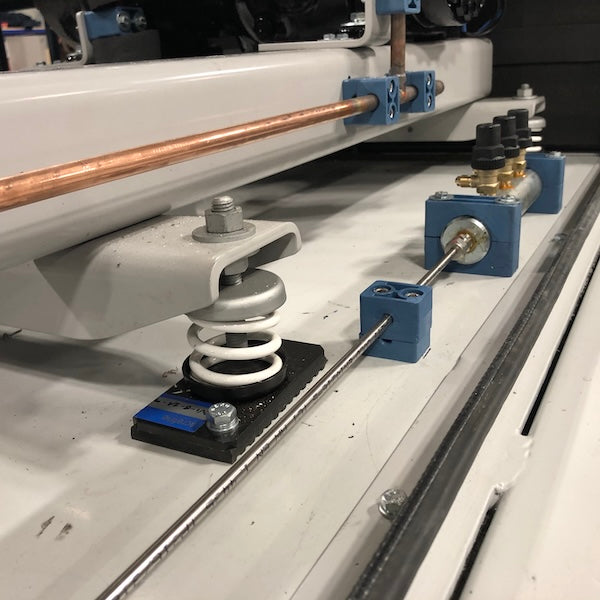

Acrefine AVI-B type vibration isolator is designed to minimize vibration and noise transmission from floor mounted equipment. It has a bottom plate with two fixing holes to secure the spring isolator to the structure. The rubber pad under the bottom plate eliminates high-frequency vibrations.

Vibration isolation is achieved by free standing laterally stable steel springs. Springs are designed with 50% overload capacity and the lateral spring stiffness is greater than the vertical stiffness to assure seismic stability. All springs are colour coded for easy identification.

• With bottom plate for securing to the structure
• Rubber lining to eliminate high-frequency vibration
• Field interchangeable, colour coded springs
• Powder coated springs and bottom plates for superior corrosion protection, zinc plated fasteners
• Standard spring deflection of 25 mm (1″)
• Load capacity up to 275 kg (606 lb) as standard
