Heavy-Duty Ribbed Rubber Anti Vibration Mat for Machinery and Pipe Supports

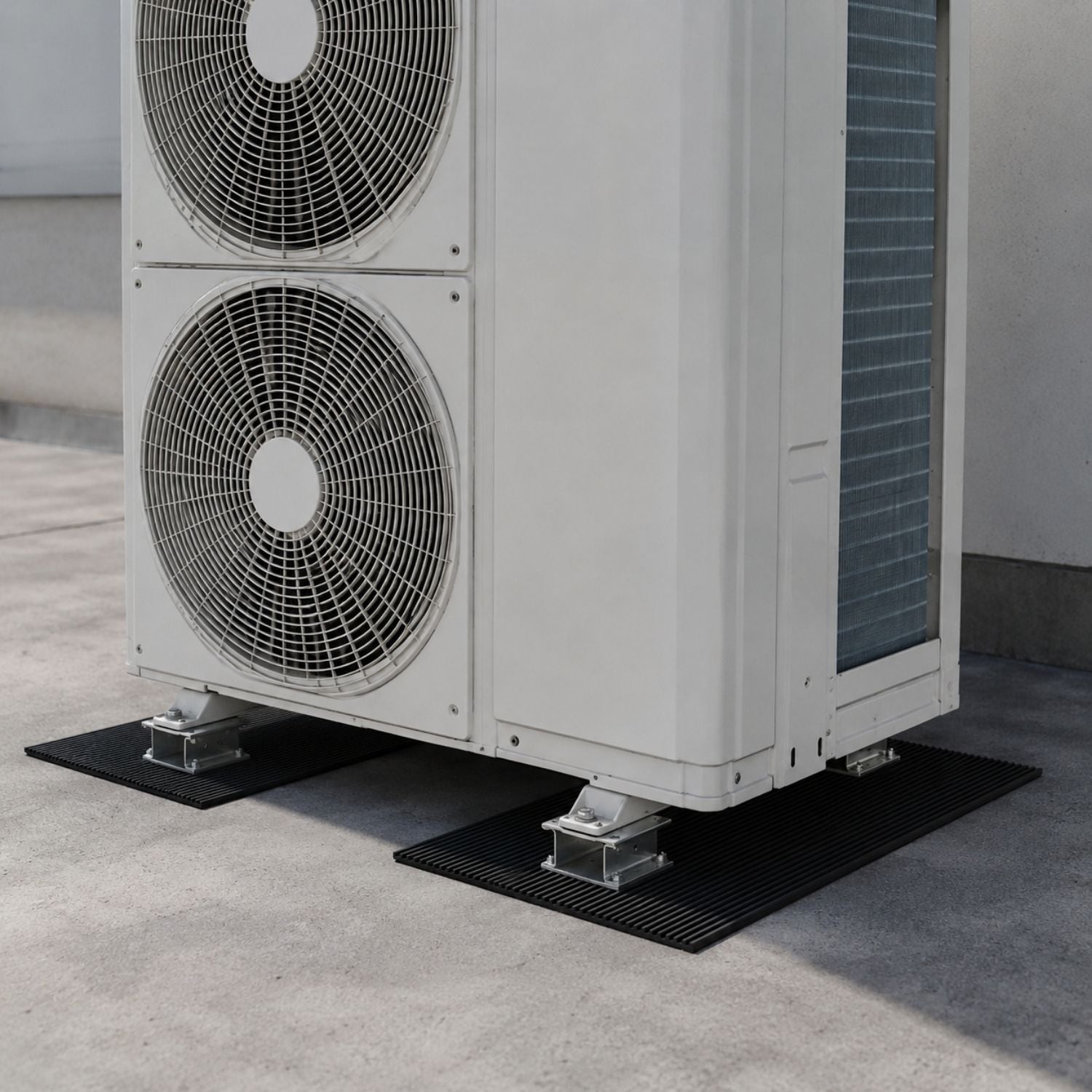

Acrefine API-S is a heavy-duty, single-sided ribbed rubber anti vibration mat, supplied as a sheet that you cut to the size you need. It reduces structure-borne vibration and noise under floor-mounted equipment such as air-conditioning units, heat pumps, pumps, compressors, generators and workshop machinery, and protects floors under heavy gym equipment. It is also used as a non-slip lining for pipe supports, to stop metal-to-metal contact.
Construction and Dimensions
-
Thickness: 7.70 mm (5/16").
-
Load capacity: 380 kPa (55 psi), i.e. 97 kg (214 lb) on every 50 × 50 mm.
-

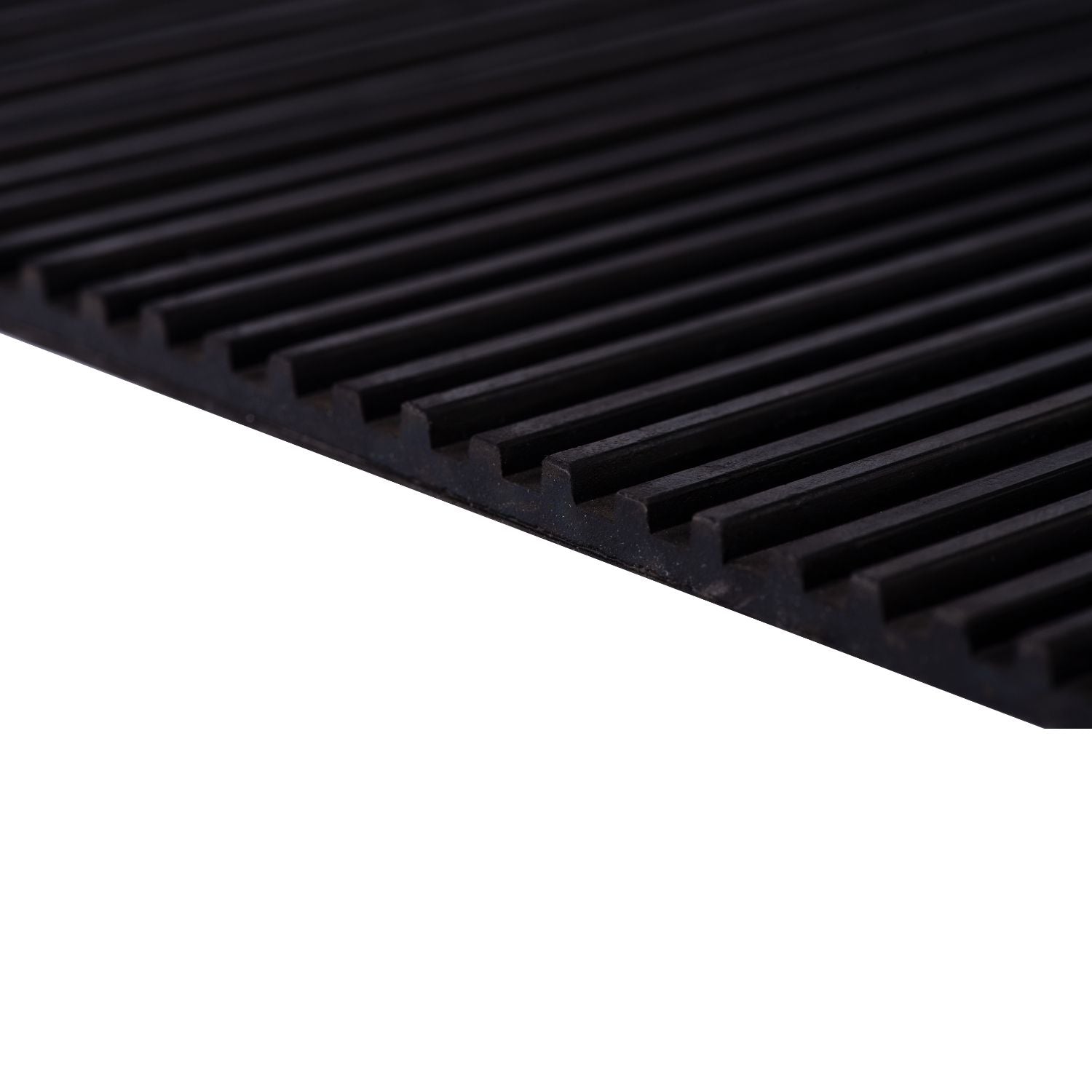

Ribs: taller and lower ribs alternate on one side. The taller ribs carry light loads; as the load increases, the lower ribs engage and the mat stiffens.
-
Base: flat underside, non-slip ribbed top.
-

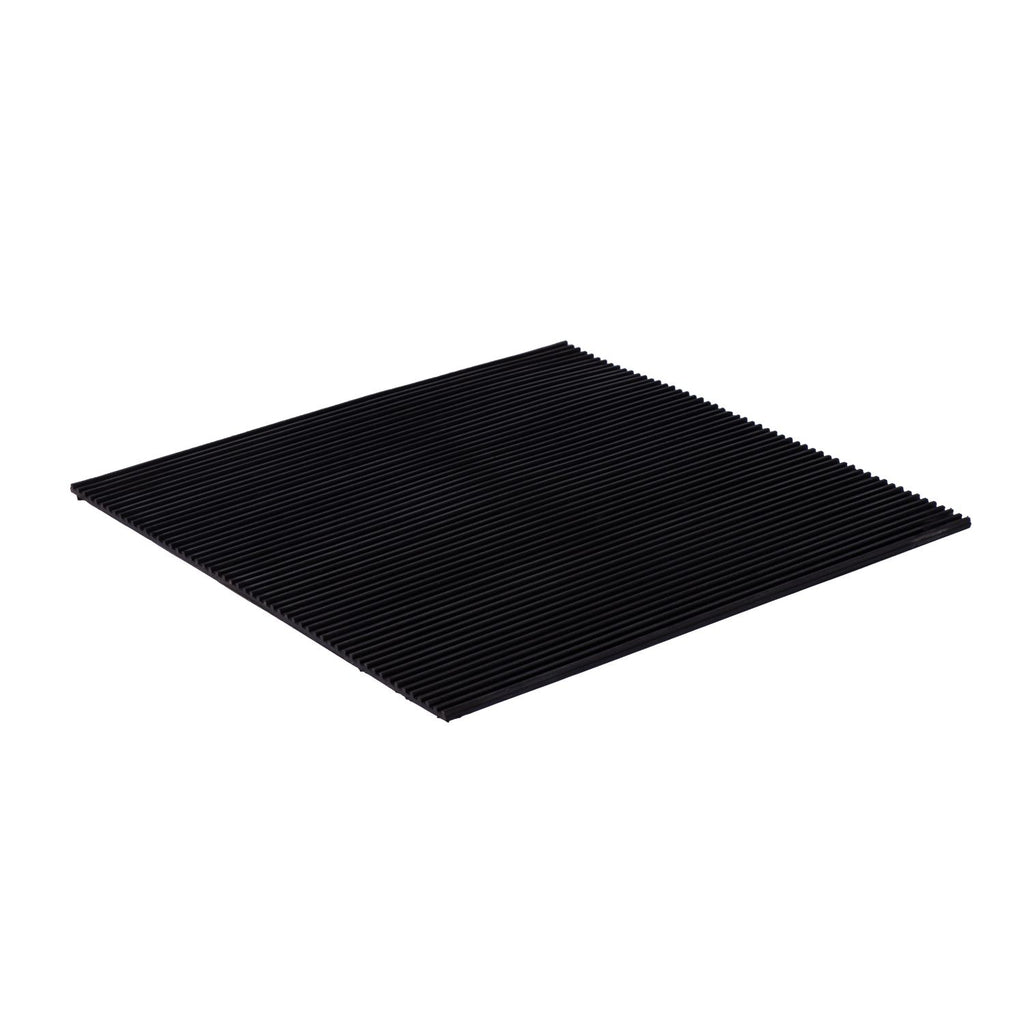

Full sheet: 457 × 457 mm (18" × 18"), including cut allowance. Cut it with a sharp utility knife.
Load Table
| Cut size |
Max. load per pad |
| 50 × 50 mm |
97 kg (214 lb) |
| 100 × 100 mm |
387 kg (853 lb) |
| 150 × 150 mm |
872 kg (1922 lb) |
| 200 × 200 mm |
1550 kg (3417 lb) |
| 250 × 250 mm |
2422 kg (5340 lb) |
| 300 × 300 mm |
3487 kg (7688 lb) |
| 350 × 350 mm |
4747 kg (10465 lb) |
| 450 × 450 mm |
7847 kg (17300 lb) |
Values are per pad at 380 kPa (55 psi), with the load evenly spread over the pad. For other sizes, allow 3.87 kg per cm² of pad area.
How to Choose and Install
-
How many pads: divide the weight of the machine by the load per pad and round up. Place the pads under the feet or base frame so each one carries a similar share of the load.
-
Natural frequency: at full load a single pad gives about 14.4 Hz; two stacked pads about 10.2 Hz and three about 8.3 Hz (estimated from static deflection, per industry practice).
-
Stacking: always put a steel plate between layers. Two mats laid rib to rib interlock and act as one stiff block.
-
Bolting down: use an elastic washer or grommet under the bolt head, so the bolt does not bridge the pad and carry vibration into the floor.
