Acrefine Isolation Hanger AH-S

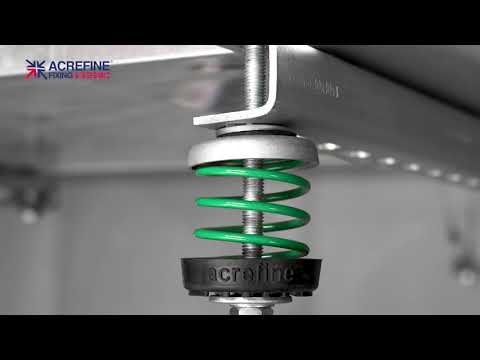

Acrefine AH-S type vibration hanger is designed to minimize vibration and noise transmission from suspended equipment and services. Spring design compensates for up to 15° rod misalignment in any direction. The hangers have welded steel housing and a load-carrying cup for easy installation. AH-S type spring hanger is assembled into an elastomeric acoustical cup to eliminate internal noise.

Vibration isolation is achieved by free standing laterally stable steel springs. Springs are designed with 50% overload capacity and the lateral spring stiffness is greater than the vertical stiffness to assure seismic stability. All springs are colour coded for easy identification.

• Compensates for up to 30° rod misalignment
• Can be preloaded to save valuable installation time
• Rubber washer to eliminate high-frequency vibration
• Field interchangeable, colour coded springs
• Powder coated housings and springs for superior corrosion protection, zinc plated fasteners
• Standard spring deflection of 25 mm (1″)
• Load capacity up to 185 kg (408 lb) as standard
