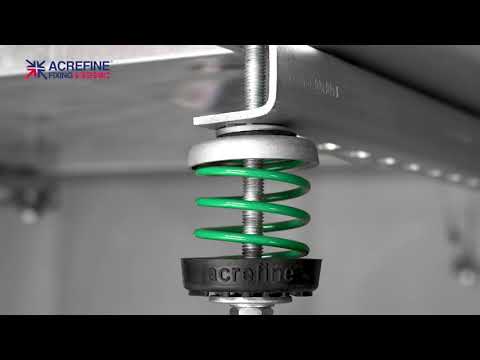

Acrefine Isolation Hanger AH-R

Acrefine AH-R type rubber vibration isolation hanger is designed to minimize vibration and noise transmission from suspended equipment and services. The hangers have welded steel housing. They offer a cost-effective solution for suspended equipment that generates noise and vibration.

Vibration isolation is achieved by rubber designed to be governed by the shear modulus. This allows for increased strain, and deterioration is minimized. Rubber elements are grouped by their ‘Shore A Hardness’ which corresponds to different load ranges. There are three groups, each colour coded for easy identification and to promote correct installation.

• Powder coated housings for superior corrosion protection
• Double deflection rubber
• Colour marked rubber elements for easy identification
• Max. deflection up to 13 mm (1/2″)
• Load capacity up to 275 kg (606 lb) on standard range
• Four groups; 40, 50, 60, 70 Shore A Hardness
