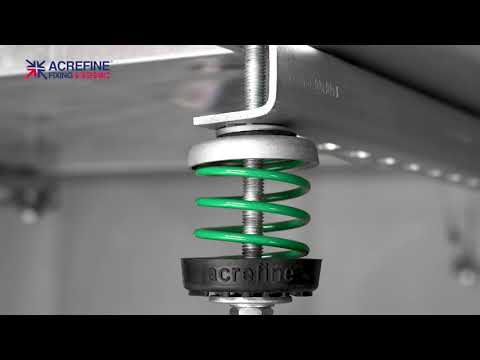

Acrefine AH-C type vibration hanger is designed to minimize vibration and noise transmission from suspended equipment and services. Spring design compensates for up to 15° rod misalignment in any direction. The hangers have welded steel housing and a rubber element which is loaded under shear allowing for increased strain, and deterioration is minimized. All springs and rubber inserts are colour coded for easy identification.

Vibration isolation is achieved by free standing laterally stable steel springs. Springs are designed with 50% overload capacity and the lateral spring stiffness is greater than the vertical stiffness to assure seismic stability. All springs are colour coded for easy identification.

• Compensates for up to 30° rod misalignment
• Can be preloaded to save valuable installation time
• Double deflection rubber up to 13 mm (1/2″) deflection
• Field interchangeable, colour coded springs
• Powder coated housings and springs for superior corrosion protection, zinc plated fasteners
• Standard spring deflection of 25 mm (1″)
• Load capacity up to 185 kg (408 lb) as standard
