Acrefine Anti-Vibration Pad API-S

Acrefine API-S type rubber pad is designed to minimize vibration and noise transmission from floor mounted and suspended equipment, ventilation ducts and all kinds of services.

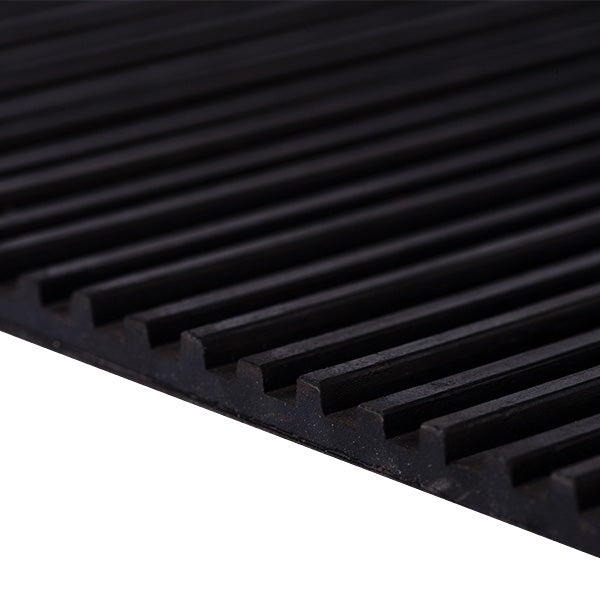

API-S incorporates a single-sided ribbed design which prevents slippage and allows the pad to be used as lining on any surface. The ribs have two different height to assure the required deflection is achieved.

Pads are manufactured in 450×450 mm (18×18”) sheets that can be cut to required sizes. The standard thickness of the pad is 7 mm (1/4”).

• Two different height of ribs assure the required deflection is achieved
• Can be used as lining
• Can be cut to any size required
• Can be stacked with steel plates to achieve high deflection
• 7 mm (1/4”) thickness
• Designed for 380 kPa (55 psi)
